2024 TREK Checkpoint SL 5 Deep Smoke

Product Spec

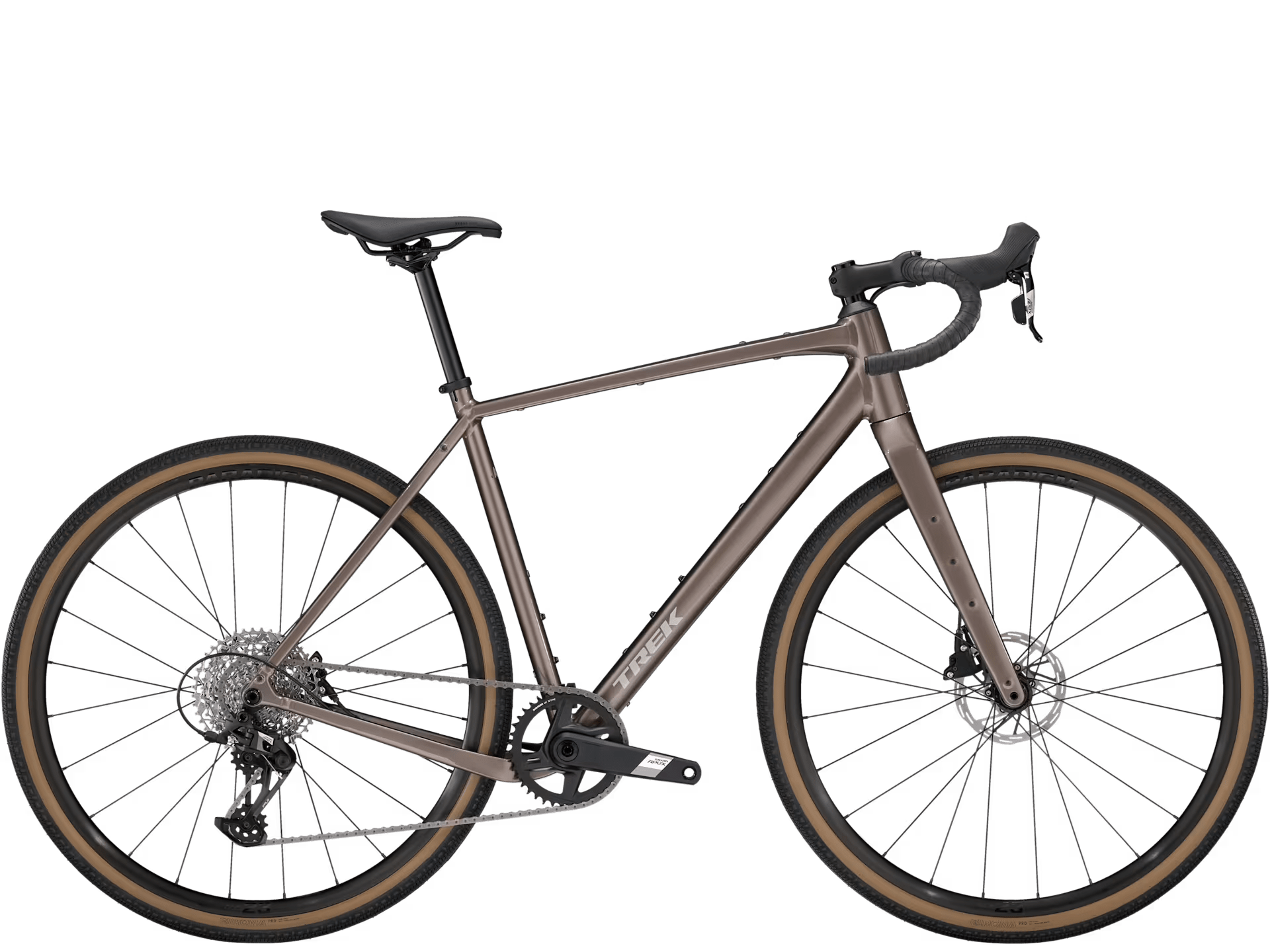

2024 TREK Checkpoint SL 5 Deep Smoke

The Checkpoint SL 5 is a carbon gravel bike made for epic adventures. It’s built with lightweight OCLV Carbon, a 2×12 Shimano GRX drivetrain, terrain-smoothing damped IsoSpeed, nimble yet stable progressive geometry, internal storage and loads of mounts. All of that adds up to a rad gravel bike capable of crushing the longest, roughest rides and the most ambitious bikepacking trips.

*Please note – spec applies to all sizes unless listed separately

Frameset

Frame	500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, dropper post compatible, 142×12 mm thru axle
Fork	Trek Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle

Weight

Weight	56 – 9.65 kg / 21.28 lbs (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Drivetrain

Shifter	Shimano GRX RX610, 12-speed
Front derailleur	Shimano GRX RX820, braze-on, down swing
Rear derailleur	Shimano GRX RX820, 36T max cog
*Crank	Size: 49 Shimano GRX RX610, 46/30, 165 mm length
	Size: 52 Shimano GRX RX610, 46/30, 170 mm length
	Size: 54, 56 Shimano GRX RX610, 46/30, 172.5 mm length
	Size: 58, 61 Shimano GRX RX610, 46/30, 175 mm length
Bottom bracket	Praxis, T47 threaded, internal bearing
Cassette	Shimano 105 7100, 11-36, 12-speed
Chain	Shimano SLX M7100, 12-speed
Max. chainring size	1x: 46T, 2x: 50/37

Wheels

Hub front	Bontrager alloy, sealed bearing, CenterLock disc, 100×12 mm thru axle
Skewer front	Bontrager Switch thru axle, removable lever
Hub rear	Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142×12 mm thru axle
Skewer rear	Bontrager Switch thru-axle, removable lever
Rim	Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Tyre	Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700×40 mm
Tyre part	Bontrager TLR sealant, 180 ml/6 oz
Rim strip	Bontrager TLR
Max tyre size	See service manual

Components

*Saddle	Size: 49, 52 Bontrager Verse Comp, steel rails, 155 mm width
*Saddle	Size: 54, 56, 58, 61 Bontrager Verse Comp, steel rails, 145 mm width
Seatpost	Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
*Handlebar	Size: 49 Bontrager Elite Gravel, 38 cm width
	Size: 52 Bontrager Elite Gravel, 40 cm width
	Size: 54, 56 Bontrager Elite Gravel, 42 cm width
	Size: 58, 61 Bontrager Elite Gravel, 44 cm width
Handlebar tape	Bontrager Supertack Perf tape
*Stem	Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
	Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
	Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
	Size: 61 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Brake rotor	Shimano RT70, centerlock, 160mm
Rotor size	Max brake rotor sizes: 160 mm front and rear

Accessories

Bag	Bontrager BITS Internal Frame Storage Bag

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer’s suggested retail prices.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
