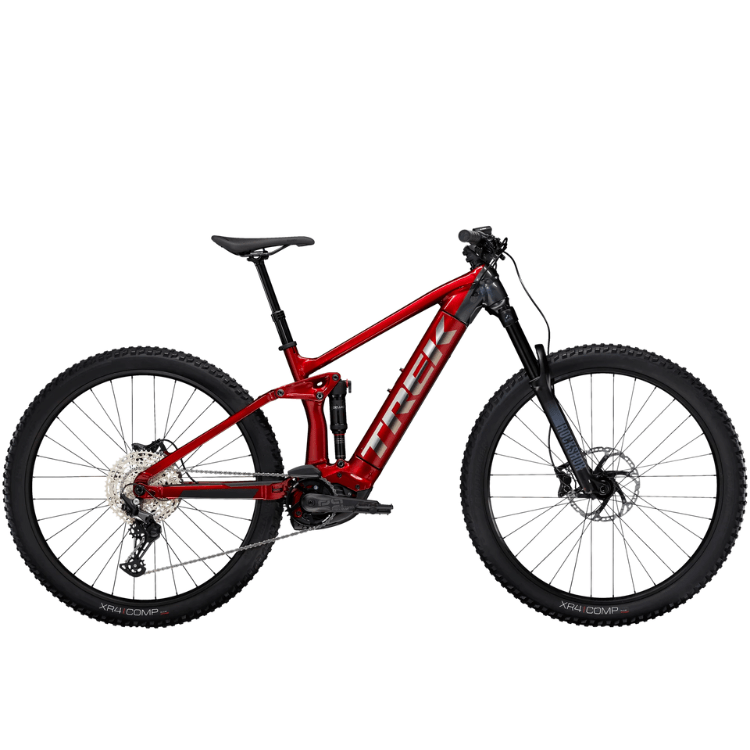

TREK MY22 Rail 5 Size XLarge – Crimson/Lithium Grey GEN2

R65,000.00 INC VAT

Rail 5 is our best-value long-travel e-MTB. It’s equally as capable as our regular long-travel trail bikes, it just gets you back to the top in a flash. The robust Bosch drive systems and durable part spec make for long-lasting fun.

Out of stock

Product Spec

Frame	Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Fork	RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel
Shock	RockShox Deluxe Select+, 230 mm x 57.5 mm
Max compatible fork travel	170mm (580mm axle-to-crown)

Hub front	Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear	Bontrager alloy, loose bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Skewer rear	Bontrager Switch thru-axle, removable lever
Rim	Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
Tyre	Bontrager XR4 Comp, wire bead, 30 tpi, 29×2.60″
Max tyre size	Frame: 29×2.60″, Fork: See manufacturer

Battery	Bosch PowerTube 500 Wh
Charger	Bosch compact 2A, 100–240V
Computer	Bosch Purion
Motor	Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 20 mph or 32 km/h max assist

Shifter	Shimano Deore M6100, 12-speed
Rear derailleur	Shimano Deore M6100, long cage
Crank	Ethirteen Espec Plus, 165 mm length
Chainring	E*thirteen, 34T, steel
Cassette	Shimano Deore M6100, 10-51, 12-speed
Chain	Shimano Deore M6100, 12-speed
Pedal	VP-536 nylon platform
Max. chainring size	1x: 34T

Saddle	Bontrager Arvada, steel rails, 138 mm width
*Seatpost	Size: S TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
*Seatpost	Size: M, L, XL TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
Handlebar	Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips	Bontrager XR Trail Comp, nylon lock-on
Stem	Bontrager Rhythm Comp, 31.8 mm, 0-degree, 50 mm length
Head set	Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8″ top, 1.5″ bottom
Brake	Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
Brake rotor	Shimano RT76, 6-bolt, 203 mm

Shipping

Delivery charges:

Province	Standard Rate	Heavy/Large Items*	Local Pickup
GAU	R160.00 incl VAT	R700.00 incl VAT	Free – BSC Fourways
EC	R160.00 incl VAT	R700.00 incl VAT	Free – BSC George
FS, KZN, LIM, MP, NC, NW, WC	R160.00 incl VAT	R700.00 incl VAT	NA

*Heavy/Large Items include: All Bicycles, Indoor Trainers, Bike racks and stands.

For International Deliveries, a quote will be arranged. Please get in touch with us to discuss further.

All orders will be delivered within 48-72 hours. You will be notified once the parcel has been packed and shipped.

For orders placed on Public holidays or during the Christmas season, delivery times may vary.

Returns / Exchanges

Requests for returns must be logged within 30 days of the purchase date.

Item/s must be in a re-sellable condition.

Please request a return by contacting us with your order number, the details of the item/s in question, and an explanation of why you would like to return the item/s. We will get in touch and confirm the details.

Return requests will be approved at the discretion of The Bicycle Service Company (BSC).

Shipping and handling charges are not refundable.

Except in the case of a defect, we will not accept returns of item/s that have been used after 30 days. See Warranty info.

Please ensure that the item/s are in the packaging you received them in and include the original order invoice. A separate box must be used to ship shoes/trainers back with the original box inside.

Warranties

BSC supplies a selection of premium products, each with particular warranties and guarantees. Please remember to register your product and take note of the warranties offered.
